Parameter |
Symbol |
Conditions |
Min |
Avg. |
Max |
Units |
|
Forward Voltage |
VF |
IF=150mA |
4.50 |
-- |
6.50 |
V |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=150mA |
-- |
5 |
-- |
°C/W |
|
Radiant Flux |
Φe |
IF=150mA |
15 |
-- |
25 |
mW |
|
Peak wavelength |
λp |
IF=150mA |
320 |
-- |
330 |
nm |
|
Reverse Current |
IR |
VR=5V |
−− |
−− |
10 |
μ A |
|
Viewing Angle |
2Θ1/2 |
IF=150mA |
−− |
120 |
−− |
Deg |

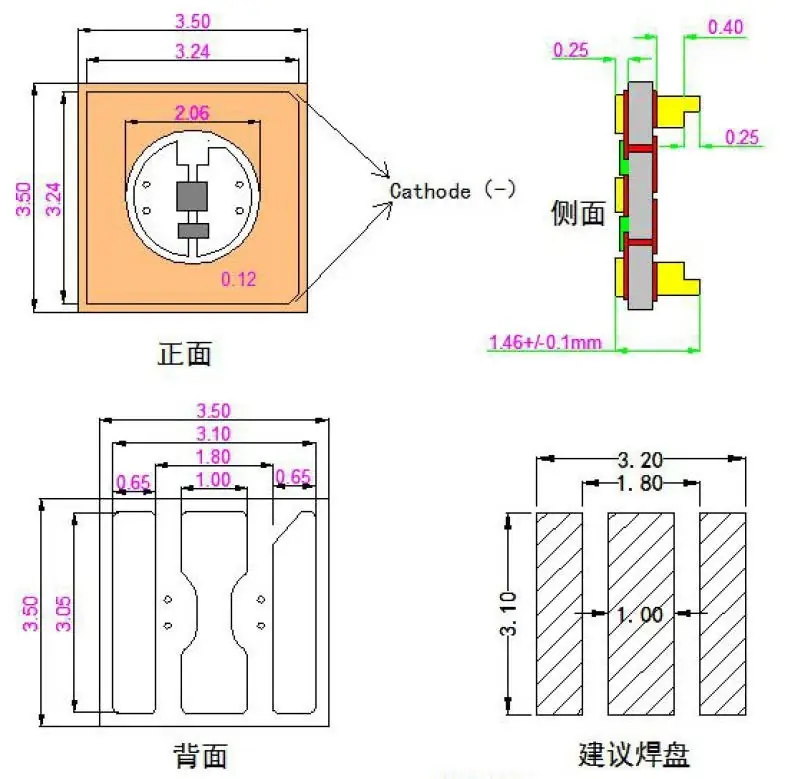

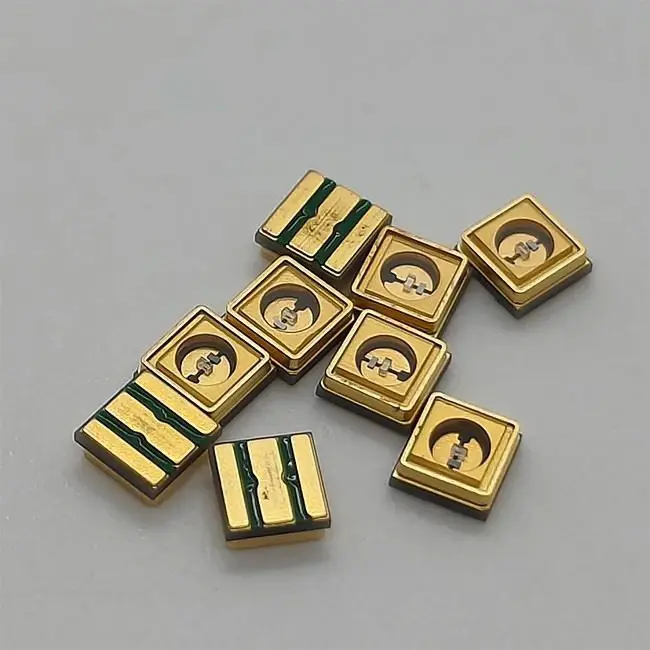

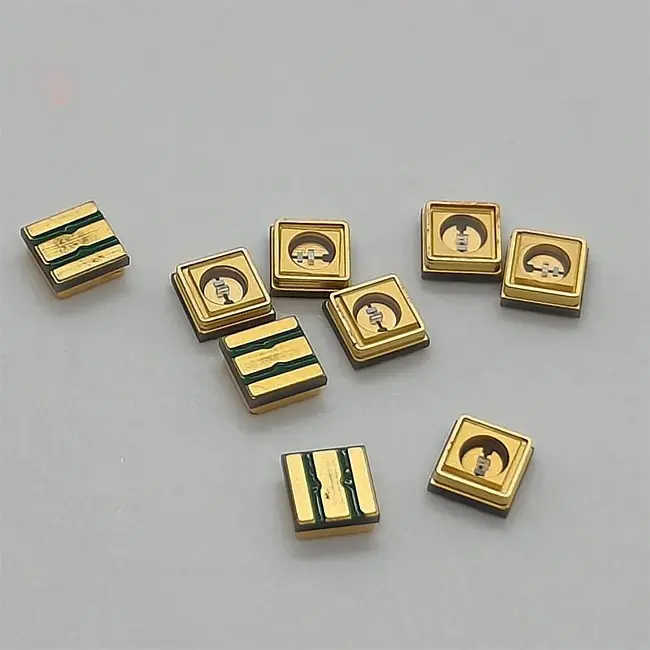

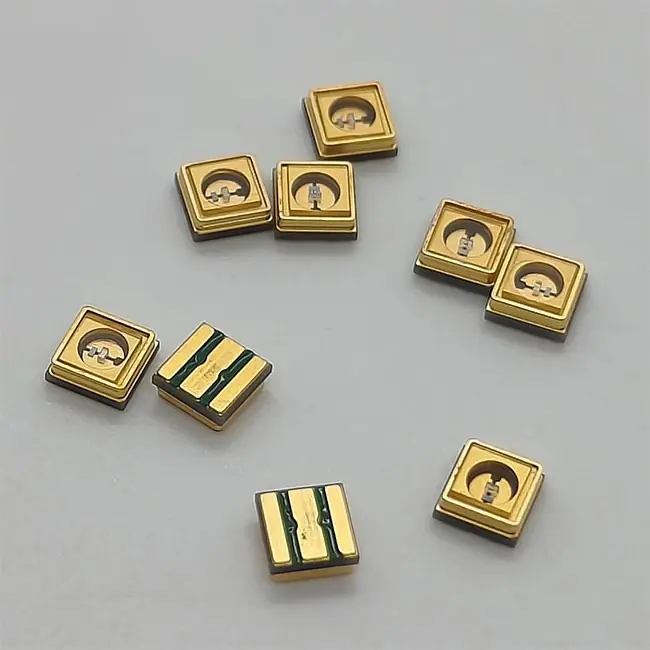

| Part number | GD-3535U320-1CD0-PW20B |
|---|---|
| Input | 4.5-6.5vdc 150mA |
| Flux | 15-25mW radiation power |
| Color | UVB 320-330nm |
| Power | 1W |
| Ceramic package material | ALN ceramic |
| Lighting angle | 120 degree with flat quartz glass lens |
Which wavelength should I choose: 320nm, 325nm or 330nm?
Choose the wavelength based on your target spectrum, optical design, working distance and system-validation results. Share your application requirements for further selection support.
Can this LED be connected directly to a power supply?
No. Use an appropriate constant-current driver and assess the complete electrical and thermal design before operation.
Is this LED suitable for medical equipment?
It may be evaluated as a component in a medical-device light-source design. The safety, performance, effectiveness and compliance of the finished device remain the responsibility of the device developer.
Can you supply a complete LED module?
Yes. Board-mounted and driver-integrated module requirements can be evaluated based on your wavelength, optical, mechanical and quantity requirements.
